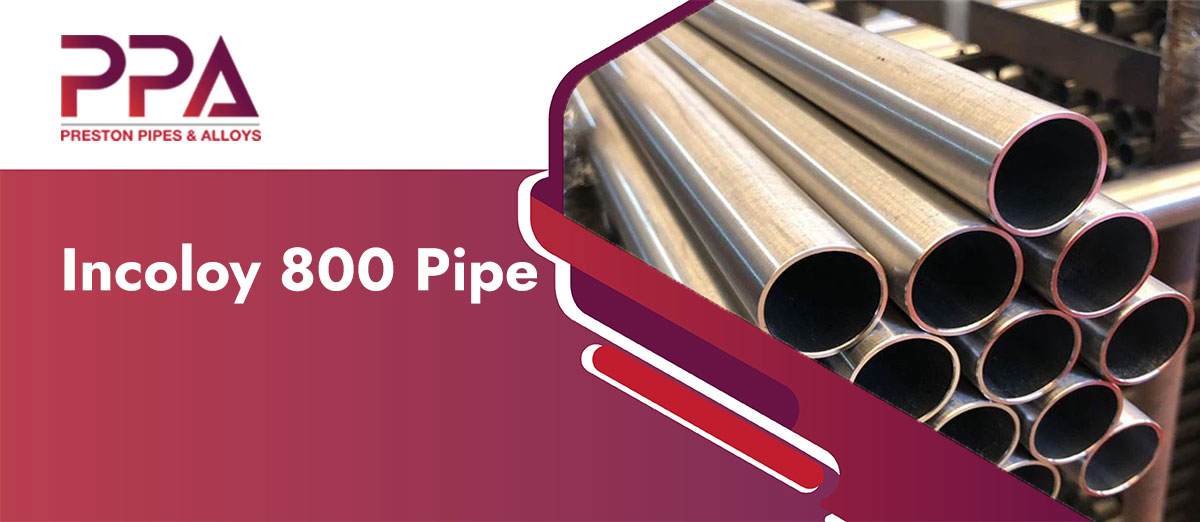

Incoloy 800/800H/800HT Pipes

ASTM B407 800/800H/800HT Incoloy Pipes Stockist in Mumbai India.

ASTM B407, B514 800/800H/800HT Seamless, Welded, ERW Pipes

Alloy 800/800H/800HT ERW Pipes Stockist and Supplier in Mumbai India.

Preston Pipes and Alloys has become NO 1 supplier of Incoloy 800 / 800H / 800HT Pipes amongst the domestic and international clients. The company fabricates these pipes in the different designation or as per the consignment of clients. We undertake national and international standards in production activity that means the quality of pipe gets better.

Incoloy 800 grade has the greatest success story. It accounts for more than 50% of all piping requirements and represents as prominent material for piping applications. This grade is not appropriate for every application but also have excellent attributes. These pipes used to avoid possible sensitization corrosion. These have good resistance towards different reducing media also it has general corrosion resistance. In moderate chloride environments, it performs well resisting crevice and stress corrosion cracking.

Incoloy 800 / 800H / 800HT Seamless Pipes has good ability to stand in fluctuating temperatures retaining the original structures. This grade has good forming characteristics; it can deep draw into any design. Moreover, these have good weldability and can be welded by the standards welding process. Incoloy pipes also have good machinability.

Technical information-
Our plant holds the latest machines and equipment thereof to get precise dimension. In case of break off surface finishing process are performed. Additionally, metal refinement process is executed that enhance the hardenability of the product.

Quality alerts-
As a reputable dealer in the piping industry we adhere to strict quality measures and developed own testing facility. This process involves different testing like- hardness test, mechanical test, positive material test, chemical test, visual inspection. Other tests are the tensile test, intergranular corrosion test, flaring test, flattening test, ultrasonic test, radiographic test, pitting corrosion test and micro and macro test.

One can choose industrial standard packing or custom delivery option as per their convenience. Place your bulk orders for Incoloy 800 / 800H / 800HT Pipes and get discounts.

Equivalent Grades
800 1.4876 N08800 NCF 800 NA 15 ЭИ670 Z8NC32-21 X10NiCrAlTi32-20 XH32T
800H 1.4958 / 1.4876 N08810 NCF 800H NA 15(H) ЭИ670 Z8NC33-21 X5NiCrAlTi31-20 XH32T
800HT 1.4859 / 1.4876 N08811 NCF 800HT NA 15(HT) ЭИ670 - X8NiCrAlTi32-21 XH32T
Incoloy 800/800/800HT Pipes

Standard Specification
Specifications :
Standard :
Pipe Size :
Outside Diameter :
Length :
Thickness :
Schedule :
Type :
End :
ASTM B407, B514 / ASME SB407, SB514
Range 15"NB – 150"NB
6.35 mm OD upto 254 mm OD in 0.6 TO 20 mm thickness.
Single Random, Double Random & Required Length
0.3mm – 50 mm
SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH120, SCH140, SCH160, XXS
Seamless, Welded, ERW
Plain End, Beveled End, Treaded

Chemical Composition
Grade C Mn Si S Cu Fe Ni Cr Al Ti
800 0.10 max 1.50 max 1.00 max 0.015 max 0.75 max 39.50 min 30.00 – 35.00 19.00 – 23.00 0.15 – 0.60 0.15 – 0.60
800H 0.05 – 0.10 1.50 max 1.00 max 0.015 max 0.75 max 39.50 min 30.00 – 35.00 19.00 – 23.00 0.15 – 0.60 0.15 – 0.60
800HT 0.06 – 0.10 1.50 max 1.00 max 0.015 max 0.75 max 39.50 min 30.00 – 35.00 19.00 – 23.00 0.15 – 0.60ᴬ 0.15 – 0.60ᴬ

Mechanical Properties
Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
7.94 g/cm3 1385 °C (2525 °F) Psi – 75,000 , MPa – 520 Psi – 30,000 , MPa – 205 30 %

Types Of Grade 800/800H/800HT Incoloy Pipes
pipe icon Incoloy Grade 800/800H/800HT Pipe

Incoloy 800 Pipe

Alloy 800H Pipes

Incoloy 800HT Seamless Pipes

800 Incoloy Alloy Pipe

Nickel Alloy 800/800H/800HT Pipes

ASTM B407 Alloy 800 Seamless Pipe

ASME SB 514 Incoloy 800H Welded Pipes

Incoloy 800HT Welded Pipe Supplier

Incoloy 800HT Pipes Exporter

Alloy 800H ERW Pipe

pipe icon 800/800H/800HT Pipe Equivalent Grades

Incoloy 1.4876 Pipe

Incoloy® Alloy 1.4859 Seamless Pipe

Incoloy 1.4958/1.4876 Welded Pipes

Incoloy N08800 ERW Pipes

Incoloy Alloy 800/800H/800HT Pipes

Alloy N08810 Pipes

UNS N08811 Seamless Pipe

Incoloy N08800 ERW Pipes

N08800 Seamless Pipes

JIS NCF 800 Welded Pipe

Incoloy NCF 800H ERW Pipe

Application Industry

Incoloy 800/800H/800HT Pipes are known to deliver exceptional performance and are generally developed for meeting the demands. We offer a broad range of Alloy 800/800H/800HT Seamless Pipes, Welded Pipes through a worldwide network of stock-keeping branches. These are use in various industries like :

Application Industry
  • Chemical Industry
  • Oil & Gas Industry
  • Petrochemical Industry
  • Power Genration Industry
  • Sugar Industry
  • Food Processing Industry
  • Paper & Pulp Industry
  • Offshore and Onshore Services
