Stainless Steel 347H Pipe Manufacturer & Supplier

Stainless Steel 347H Pipe Supplier & ASME SA 312 TP 347H Seamless Pipe Stockist in India

Table of Content

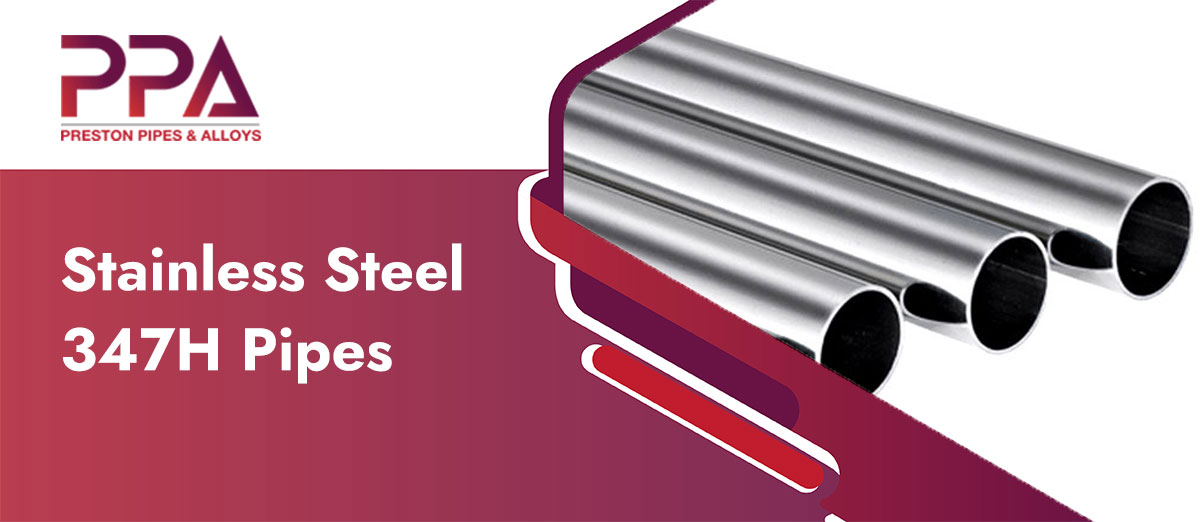

Stainless Steel 347H Pipes are high performance austenitic pipes made for elevated temperature service. These pipes are stabilized with niobium, making it resistant to intergranular corrosion even after exposure to high temperatures. One of the top supplier of stainless steel 347H pipes Preston Pipes & Alloys, supplies premium goods designed for demanding conditions. This alloy is used in heat exchangers, compensators, superheater and afterburner parts, furnace components, and petrochemical pipes. The key features of these pipes are excellent creep strength, resistance to heat-induced corrosion, and strong mechanical stability under pressure.

347H Stainless Steel Pipes contain elements like carbon, manganese, silicon, phosphorus, sulfur, chromium, nitrogen, nickel, and cobalt with tantalum. This combination delivers reliable strength and heat resistance. The mechanical profile includes a minimum tensile strength of 515 MPa and a yield strength of 205 MPa. The pipes show 35% elongation and maintain a maximum hardness of 92 HRB. The material's 8000 kg/m³ density, and 18.7 W/m.K. thermal conductivity at 500°C ensure consistent performance with changing temperatures. UNS S34709, WERKSTOFF NR. 1.4961, and X6CrNiNb18-12 are equivalent grades for Stainless Steel 347H Pipes.

347H Stainless Steel Pipe comes in several manufacturing types, including Seamless, ERW, Welded, and EFW. The sizes of the pipes range from ½ inch to 6 inches nominal bore (NB) and it can also be customized according to the client's request. These pipes offer surface finishes like polished, pickled, annealed, brilliant, and cold-finished, as well as are available in square, round, rectangular and hydraulic shapes. The strength and versatility of these pipes make it suitable for high-usage industrial applications.

Each 347H Stainless Steel Pipe undergoes rigorous quality inspections and tests to meet international standards. This comprises hydro testing, ultrasonic testing and mechanical property testing. Pipes are carefully packed using protective materials to prevent damage in transit. As a reputable supplier of 347H Stainless Steel Pipe, we provide a consistent supply that is supported by both performance and quality. Get in touch today to source pipes that deliver long-term value.

Trusted Distributor of Stainless Steel 347H Werkstoff Nr. 1.4961 Pipes, SS 347H Material Supplier & Stockist in Mumbai

SS UNS S34709 Seamless Pipe Specification

ASTM / ASME Name	ASTM A312 / ASTM SA312
ANSI / ASME Standard	ANSI/ASME B36.19M, ANSI/ASME B36.10M
Available Forms and Types	Square, Hex, Round, Rectangle, Hydraulic, Honed
Frequently Used	Fabricated, 100% X Ray Welded, ERW, Seamless, CDW, Welded
Pipe End Finish	Beveled End, Plain End, Treaded
Delivery Condition	Cold Drawn, Polished, Bright Annealed, Annealed and Pickled
Surface Coating and Finish	2B, No.4, No.1, No.8 Mirror Finish or custom Finish as per customer Requirements
Pipe Wall Thickness	SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS
Industrial Value Added Services	Export Packaging, Threading, Threading, Non Beveling, Customer Tagging/ Marking, Destructive, Grooving, Export Documentation, Ultrasonic Testing, Machining, Cutting, Destructive, MTR’s Available, Material testing, Color Coding, Polishing
Marking on AISI 347H Pipes	Specification Grade Nominal Pipe Sizes Pipe Schedule or Wall Thickness Manufacturing Method (Seamless / Welded) Heat Number Manufacturer’s Name or Custom Logo - on request Marked Pipe Sample: ANSI B36.19 ASTM A312 TP347H 12" NB SCH 40S SEAMLESS HEAT NO. XXXX

ASTM A312 TP347H Stainless Steel Pipe Sizes Available

Sizes: 6NB - 1200NB
Outside Dia.: 1/8" - 12" NPS
Thickness: 0.6 - 12.7 mm
Length: Single, Double Random & Cut Length

Verified stockist and distributor of AISI 304H Rectangular Pipe, SS 304H Pipe Manufacturer

Pressure Rating of SS 347H Square Pipe

Pressure (psig)
Size (in.)	SCH	Temperature (°F)
-	-	750	700	650	600	500	400	300	200	100
10"	40	578	584	596	615	645	694	755	840	974
	160	1868	1880	1927	1986	2085	2242	2439	2714	3147
	80	56	966	986	1016	1066	1147	1247	1388	1609
8"	40	637	644	657	678	711	765	832	926	1073
	160	1885	1905	1944	2004	2103	2262	2460	2738	3175
	80	1005	1015	1036	1068	1121	1205	1311	1459	1692
6	40	724	732	747	770	808	869	945	1052	1219
	160	1953	1973	2014	2076	2179	2343	2549	2836	3289
	80	1136	1148	1172	1208	1267	1363	1483	1650	1913
5"	40	797	805	822	847	889	956	1040	1158	1342
	160	2027	2049	2091	2155	2262	2433	2646	2945	3414
	80	1176	1189	1213	1250	1312	1411	1535	1709	1981
4"	40	909	919	938	967	1014	1091	1187	1321	1531
	160	2138	2161	2206	2273	2386	2566	2791	3106	3601
	80	1314	1328	1355	1397	1466	1577	1715	1909	2213
3"	40	1072	1084	1106	1140	1196	1287	1400	1558	1806
	160	2280	2347H	2352	2424	2544	2736	2976	3312	3840
	80	1516	1532	1564	1612	1691	1819	1979	2202	2553
2"	40	1129	11

Stainless Steel 347H Welded Pipe Weight Chart

Size		OD	SCH 160S		SCH 80S		SCH 40S		SCH 20S		SCH 10S		SCH 5S
mm	in.	mm	WT	Weight (kg/m)	WT	Weight (kg/m)	WT	Weight (kg/m)	WT	Weight (kg/m)	WT	Weight (kg/m)	in.	WT	Weight (kg/m)
8	1/4	13.7	–	–	3.02	0.82	2.24	0.64	2	0.58	1.65	0.49	0.54	1.2	0.37
6	1/8	10.3	–	–	2.41	0.47	1.73	0.37	1.5	0.33	1.24	0.28	0.405	1	0.23
15	1/2	21.3	4.75	1.97	3.73	1.62	2.77	1.29	2.3	1.07	2.11	1.02	0.84	1.65	0.81
10	3/8	17.2	–	–	3.2	1.12	2.31	0.87	2	0.74	1.65	0.63	0.675	1.2	0.47
20	3/4	26.7	5.56	2.93	3.91	2.93	2.87	1.71	2.5	1.52	2.11	1.3	1.05	1.65	1.05
32	1¼	42.2	6.35	5.69	4.85	4.56	3.56	3.44	3	2.9	2.77	2.73	1.66	1.65	1.65
25	1	33.4	6.35	4.3	4.55	3.29	3.38	2.54	2.5	2	2.77	2.13	1.315	1.65	1.03
40	1½	48.3	7.14	7.35	5.08	5.49	3.68	4.11	3	3.35	2.77	3.11	1.9	1.65	1.93
65	2½	73.03	9.53	14.91	7.01	11.59	5.16	8.77	4	6.81	3.05	5.26	2.875	2.11	3.7
50	2	60.3	8.74	11.26	5.54	7.6	3.91	5.52	3.5	4.25	2.77	3.99	2.375	1.65	2.4
80	3	88.9	11.13	21.3	7.62	15.51	5.49	11.47	4	8.37	3.05	6.45	3.5	3.5	4.51
125	5	141.3	15.88	49.11	9.53	31	6.55	21.08	5	16.8	3.4	11.6	5.563	2.77	9.5
100	4	114.3	13.49	33.54	8.56	22.66	6.02	16.07	4.5	12.18	3.05	8.36	4.5	2.11	5.85
150	6	168.3	8.24	67.53	10.97	42.56	7.11	28.68	6.35	25.36	3.4	13.82	6.625	2.77	11.35
250	10	273.05	28.58	172.33	12.7	81.55	9.27	60.31	6.35	41.77	4.19	27.8	10.75	3.4	22.61
200	8	219.08	23.01	111.27	12.7	64.64	8.18	43.18	6.35	33.31	3.76	20	8.625	2.77	14.8
300	12	323.85	33.32	238.68	12.7	97.43	9.53	73.85	6.35	49.7	4.57	36	12.75	3.96	31.25
400	16	406.4	–	–	–	–	12.07	123.3	7.92	77.82	4.78	47.34	16	4.19	41.6
350	14	355.6	–	–	–	–	11.13	98.54	7.92	67.9	4.78	41.3	14	3.96	34.35
450	18	457.2	–	–	–	–	14.27	155.86	7.92	87.74	4.78	53.32	18	4.19	46.85
600	24	609.6	–	–	–	–	17.48	255.41	9.53	141.11	6.35	94.52	24	5.54	82.57
500	20	508	–	–	–	–	15.09	183.42	9.53	117.14	5.54	68.64	20	4.78	59.31

Stainless Steel 347H Manufacturer, Stainless Steel 347H Price in India, Stainless Steel 347H Workstoff Nr. 1.4961 Pipes, Dealers, SS 347H Material Stockist in Mumbai

INOX 304H ERW Pipe Pressure Rating

Pressure Rating
Size (in.)	SCH	Temperature (°F)
Size (in.)	SCH	750	700	650	600	500	400	300	200	100
10″	40	578	584	596	615	645	694	755	840	974
	80	956	966	986	1016	1066	1147	1247	1388	1609
	160	1868	1880	1927	1986	2085	2242	2439	2714	3147
8″	40	637	644	657	678	711	765	832	926	1073
	80	1005	1015	1036	1068	1121	1205	1311	1459	1692
	160	1885	1905	1944	2004	2103	2262	2460	2738	3175
6″	40	724	732	747	770	808	869	945	1052	1219
	80	1136	1148	1172	1208	1267	1363	1483	1650	1913
	160	1953	1973	2014	2076	2179	2343	2549	2836	3289
5″	40	797	805	822	847	889	956	1040	1158	1342
	80	1176	1189	1213	1250	1312	1411	1535	1709	1981
	160	2027	2049	2091	2155	2262	2433	2646	2945	3414
4″	40	909	919	938	967	1014	1091	1187	1321	1531
	80	1314	1328	1355	1397	1466	1577	1715	1909	2213
	160	2138	2161	2206	2273	2386	2566	2791	3106	3601
3″	40	1072	1084	1106	1140	1196	1287	1400	1558	1806
	80	1516	1532	1564	1612	1691	1819	1979	2202	2553
	160	2280	2304	2352	2424	2544	2736	2976	3312	3840
2″	40	1129	1141	1165	1201	1260	1355	1474	1640	1902
	80	1631	1648	1682	1734	1820	1957	2129	2369	2747
	160	2671	2699	2755	2840	2980	3205	3486	3880	4499
1 1/2″	40	1340	1354	1383	1425	1496	1608	1750	1947	2257
	80	1889	1909	1949	2009	2108	2267	2466	2744	3182
	160	2743	2772	2829	2916	3060	3291	3580	3984	4619

A312 TP347H Stainless Steel Pipe Type

Stainless Steel 347H Pipe

347H Stainless Steel Welded Pipe

SS 347H ERW Pipe

SS 347H Seamless Pipe

Get the best deal on Stainless Steel 347H Pipes, Contact Preston Pipes and Alloys for a competitive quote today.

Email Us

AISI 347H EFW Pipe Chemical Composition

AISI		Ni	Mn	Si	S	C	Cr	P	Mo	N
TP 347H	min.	9.0	–	–	–	00.04	17.0	–	3.00	–
TP 347H	max.	13.0	2.0	1.00	00.030	00.10	19.0	00.045	4.00	–

ASTM A312 TP347H Mechanical Properties

SUS	Tensile Strength minimum (MPa)	Yield Strength 0.2% Proof minimum (MPa)	Elongation minimum (% in 50mm)	Hardness
				Rockwell B (HR B) maximum	Brinell (HB) maximum
347H	515	205	40	92	201

A312 Tp347h Material Equivalent

MATERIAL	UNS	WERKSTOFF NR.
	USA	GERMAN
TP347H	S34709	1.4961

Supplier of 347H Stainless Steel Pipe as per ASTM A312, A213, and A249 Standards

347H Round Pipe Physical Properties

Density	Thermal Conductivity (BTU/hr/ft2/ft/°F)	Melting Point	Heat (BTU/lb-°F)	Elasticity Modules (annealed) 2 – psi	Electrical Resistivity
0.288 lbs/in3	133	2550 – 2635°F	0.12 (32 – 212°F)	28.0 x 106 psi	72 Microhm-cm at 20°F

Industrial Application of Stainless Steel 347H Pipes
