Cut to Size 316Ti Stainless Steel Sheet, Top Supplier of ASME SA 240 SS 316Ti Plates in Mumbai, India
Table of Content
Titanium stabilized versions of the 316 grade stainless steel, such as 316Ti coil, 316Ti plate, and 316Ti sheet, provide exceptional resistance to corrosion and high temperatures. The titanium addition prevent carbide precipitation improving durability during heat exposure. These products have a composition that includes 16–18% chromium, 10–14% nickel, and 2–3% molybdenum, with titanium in controlled amounts for stability. They deliver a tensile strength of 620 MPa, a yield strength of 248 MPa, and 54% elongation in the annealed state. Preston Pipes and Alloys supplies these products in various finishes and dimensions, maintaining strict quality standards for demanding industrial uses.
The 316Ti stainless steel sheet and plate resist intergranular corrosion even after welding, making them ideal for heat-intensive operations. They handle exposure to acids like sulfuric and phosphoric, and they maintain structural integrity in chloride-rich environments. Their weldability supports complex fabrications without risk of weld decay. The coil form lets flexibility in production especially for continuous manufacturing. Chemical and petrochemical equipment, marine fittings, food processing equipment, oil and gas pipelines, power plant components and pharmaceutical vessels are among the common uses. Their combination of corrosion resistance, strength, and formability makes them a reliable choice for critical applications.

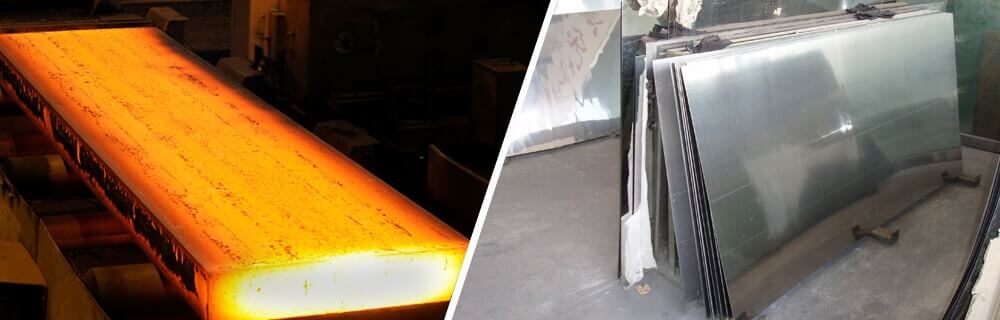

Manufacturers produce stainless steel 316Ti plate, sheet, and coil through hot and cold rolling processes after melting the alloy in an electric arc furnace. After being hot rolled to decrease thickness slabs can be cold-rolled for added strength and finish. Sheets and plates are shaped to the customer's specifications, and coils are slit and cut to size. The finishes include No. 8 mirror polish, BA bright annealed, and 2B smooth. Standard sheet dimensions are 1000 x 2000 mm, 1220 x 2440 mm, and 1500 x 3000 mm. Plates can be up to 120 mm thick, while sheets are between 0.1 and 12 mm thick. Coils can range in width from 1000 mm to 3500 mm and reach lengths of up to 6000 mm.
Every batch of stainless steel 316Ti coils, plates, and sheets undergoes stringent quality inspections. While dimensional checks verify tolerance accuracy, visual inspection guarantees a surface free of defects. Spectrographic analysis verifies chemical composition, and tensile, hardness, and corrosion tests confirm performance. Products meet ASTM A240 / ASME SA240 and other global standards. Packaging uses wooden boxes, plastic wrapping, or steel-banded bundles to prevent damage in transit. These steps ensure customers receive high-quality material ready for immediate use in their projects.
ASTM A240 Type 316Ti Coil and Foil with Rolled, Round Edges
| Specifications | ASTM A240 / ASME SA240 |
| Thickness | 4mm-100mm |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
UNS S31635 Checker Plate at Affordable Price, SS WNR 1.4571 Perforated Sheet Metal with Round and Slotted Hole
| Materials | Grades | Price in Kg (₹) | |
| Plates | |||
| Stainless Steel | 316Ti | 300-520 | |
| Thickness (mm) | 2.50 mm | 4.00 mm | 3.00 mm | 0.70 mm |
| Width (mm) | 1219 1500 | 1500 2000 | 1219 1500 | 914 1219 |
| Length (mm) | 2438, 3000 3658 | 3000 6000 | 2438, 3000 3658 | 1828 2438 |
| Thickness (mm) | Width (mm) | Stainless Steel 316ti Sheet Length (mm) |
| 0.55 mm | 914 & 1219 | 1828 & 2438 |
| 0.70 mm | 914 & 1219 | 1828 & 2438 |
| 0.90 mm | 914 & 1219 | 1828 & 2438 |
| 1.20 mm | 914, 1219 & 1500 | 1828, 2438, 3000, 3048 & 3658 |
| 1.50 mm | 914, 1219 & 1500 | 1828, 2438, 3000, 3048 & 3658 |
| 1.60 mm | 914, 1219 & 1500 | 1828, 2438, 3000, 3048 & 3658 |
| 2.00 mm | 914, 1219 & 1500 | 1828, 2438, 3000, 3048 & 3658 |
| 2.50 mm | 914, 1219 & 1500 | 1828, 2438, 3000, 3048 & 3658 |
| 3.00 mm | 914, 1219 & 1500 | 1828, 2438, 3000, 3048 & 3658 |
| 4.00 mm | 1500 & 2000 | 3000 & 6000 |
| 0.55 mm | 1219 | 2438 |
| 0.70 mm | 1219 | 2438 |
| 0.90 mm | 1219 | 2438 |
| 1.20 mm | 1219 | 2438 |
| 1.50 mm | 1219 & 1500 | 2438, 3000 & 3658 |
| 1.60 mm | 1219 & 1500 | 2438, 3000 & 3658 |
| 2.00 mm | 1219 & 1500 | 2438, 3000 & 3658 |
| 2.50 mm | 1219 & 1500 | 2438, 3000 & 3658 |
| 3.00 mm | 1219 & 1500 | 2438, 3000 & 3658 |
| 4.00 mm | 1500 & 2000 | 3000 & 6000 |
| 0.70 mm | 914 & 1219 | 1828 & 2438 |
| 0.90 mm | 914 & 1219 | 1828 & 2438 |
| 1.2 mm | 1250 | 2500 |
| 1.6 mm | 1250 | 2500 |
| 2.0 mm | 1250 | 2500 |
| 3.0 mm | 1250 & 1500 | 2500, 3000 & 6000 |
| 4.0 mm | 1250 & 1500 | 2500, 3000 & 6000 |
| Stainless Steel 316ti Sheet Weight per sheet (Kg) |
Size (mm) | Weight per sheet (Kg) |
Size (mm) |
| 17.9 | 2500 x1250 x 0.7 | 55.3 | 3000 x 1500 x 1.5 |
| 11.5 | 2000 x1000 x 0.7 | 38.4 | 2500 x 1250 x 1.5 |
| 14.7 | 2000 x1000 x 0.9 | 32.7 | 2000 x 1000 x 2.0 |
| 16.4 | 2000 x1000 x 1.0 | 73.7 | 3000 x 1500 x 2.0 |
| 23.0 | 2500 x1250 x 0.9 | 51.2 | 2500 x 1250 x 2.0 |
| 36.8 | 3000 x1500 x 1.0 | 63.9 | 2500 x 1250 x 2.5 |
| 25.6 | 2500 x1250 x 1.0 | 40.9 | 2000 x 1000 x 2.5 |
| 19.6 | 2000 x1000 x 1.2 | 92.1 | 3000 x 1500 x 2.5 |
| 44.2 | 3000 x1500 x 1.2 | 77.5 | 2500 x 1250 x 3.0 |
| 30.7 | 2500 x1250 x 1.2 | 49.6 | 2000 x 1000 x 3.0 |
| 24.6 | 2000 x1000 x 1.5 | 112.0 | 3000 x 1500 x 3.0 |
| NT in mm | Tolerances | |||
| Class B | Class A | |||
| Lower | Upper | Lower | Upper | |
| > 3 < 5 mm | -0.3 | +0.9 | -0.4 | +0.8 |
| > 5 < 8 mm | -0.3 | +1.2 | -0.4 | +1.1 |
| > 8 < 15 mm | -0.3 | +1.4 | -0.5 | +1.2 |
| > 15 < 25 mm | -0.3 | +1.6 | -0.6 | +1.3 |
| > 25 < 40 mm | -0.3 | +1.9 | -0.8 | +1.4 |
| > 40 < 80 mm | -0.3 | +2.5 | -1.0 | +1.8 |
| > 80 < 150 mm | -0.3 | +2.9 | -1.0 | +2.2 |
| > 150 < 250 mm | -0.3 | +3.3 | -1.2 | +2.4 |
- NO.8
- NO.4
- Sand Blast
- Mirror Finish
- NO.1
- Brush
- Checkered
- 2B
- Embossed
- Etching
- BA
- 2D
- Brushed Finish
- 8K
- Hair line
Stainless Steel 316Ti Sheet Metal
ASTM A240 Type 316Ti Perforated Sheet
316Ti Stainless Chequered Plate
Stainless 316Ti Plain Sheet
WNR 1.4571 Cold Rolled Sheet
UNS S31635 Hot Rolled Plate
SUS 316Ti Strip
AISI 316Ti Coil
316Ti SS Foil
INOX 316Ti Shim Sheet
SS 316Ti Shim Stock
Stainless Steel 316Ti Plate – Ready for Your Next Big Project!
| Element Alloy | Present % | |||
| TS | L | C, H, P | TW | |
| Carbon | 0.08 | 0.08 | 0.08 | 0.08 |
| Silicon | 1.00 | 1.00 | 1.00 | 1.00 |
| Manganese | 2.00 | 2.00 | 2.00 | 2.00 |
| Phosphorous | 0.040 | 0.045 | 0.045 | 0.0453 |
| Sulfur | 0.0151 | 0.0301 | 0.0151 | 0.0153 |
| Chromium | 16.50 - 18.50 | 16.50 - 18.50 | 16.50 - 18.50 | 16.50 - 18.50 |
| Nickel | 10.50 - 13.502 | 10.50 - 13.502 | 10.50 - 13.50 | 10.50 - 13.50 |
| Molybdenum | 2.00 - 2.50 | 2.00 - 2.50 | 2.00 - 2.50 | 2.00 - 2.50 |
| Titanium | 5xC to 070 | 5xC to 070 | 5xC to 070 | 5xC to 070 |
| Iron , Fe | Balance | Balance | Balance | Balance |
| Product Form | H | C | L | P | L | TS | TW | |
| Max Thickness (mm) | 12 | 8 | 160 | 75 | 2502 | 60 | 60 | |
| Yield Stress | Rp0.2 N/mm2 | 2203 | 2403 | 2004 | 2203 | 2005 | 1906 | 1906 |
| Rp1.0 N/mm2 | 2603 | 2703 | 2354 | 2603 | 2355 | 2256 | 2256 | |
| Tensile Stress | Rm N/mm2 | 540 - 6903 | 540 - 6903 | 500 - 7004 | 520 - 6703 | 500 - 7005 | 490 - 6906 | 490 - 6906 |
| Elongation in % min. |
longitudinal, A1 %min | - | - | 40 | - | - | 35 | 35 |
| transverse, A1 %min | 40 | 40 | - | 40 | 30 | 30 | 30 | |
| Impact (ISO-V) ≥ 10mm thick | longitudinal, J min | 90 | - | 100 | 90 | - | 100 | 100 |
| transverse, J min | 60 | - | 0 | 60 | 60 | 60 | 60 | |
| Physical Properties (Room Temperature) | ||
| Density | g/cm3 | 7.99 |
| Specific Heat (0-100°C) | J.kg-1.°K-1 | 500 |
| Thermal Conductivity | W.m -1.°K-1 | 14.6 |
| Modulus Elasticity | GPa | 193 |
| Thermal Expansion | mm/m/°C | 16.5 |
| Electrical Resistivity | μohm/cm | 7.4 |
| STANDARD | BS | WERKSTOFF NR. | GOST | UNS | EN | JIS | AFNOR |
| SS 316Ti | 320S31 | 1.4571 | 08Ch17N13M2T | S31635 | X6CrNiMoTi17-12-2 | SUS 316Ti | Z6CNDT17‐123 |
SS 316Ti Shim Sheet available in Custom Finish, Size and Thickness
- Material TC as per EN 10204 3.2, EN 10204 3.1 standards
- TC certified NACE MR0103, NACE MR0175
- Raw material TC
- QAP
- Heat treatment information
- Packing notes
Stainless Steel 316Ti Plate Packing
- Carton box
- Wooden pallets
- Shrink wrapped
- Wooden crates
- Wooden box
- Steel Strapping
- Custom
Stainless Steel 316Ti Plate Testing Methods
- Flattening test
- PMI test
- Hardness test
- Ultrasonic test
- Radiography test
- Flaring test
- Eddy current test
- Impact test
- Bend test
- IGC test
- Macro and micro test
- Hydrostatic test
SS 316Ti Plate Characteristics
- Excellent Corrosion Resistance
- High-Temperature Strength
- Superior Oxidation Resistance
- Strong Weldability
- Titanium Stabilized
Stainless 316Ti Plate Cutting Service
- Plasma Cutting
- Laser cutting
- Oxy propane flame cutting
